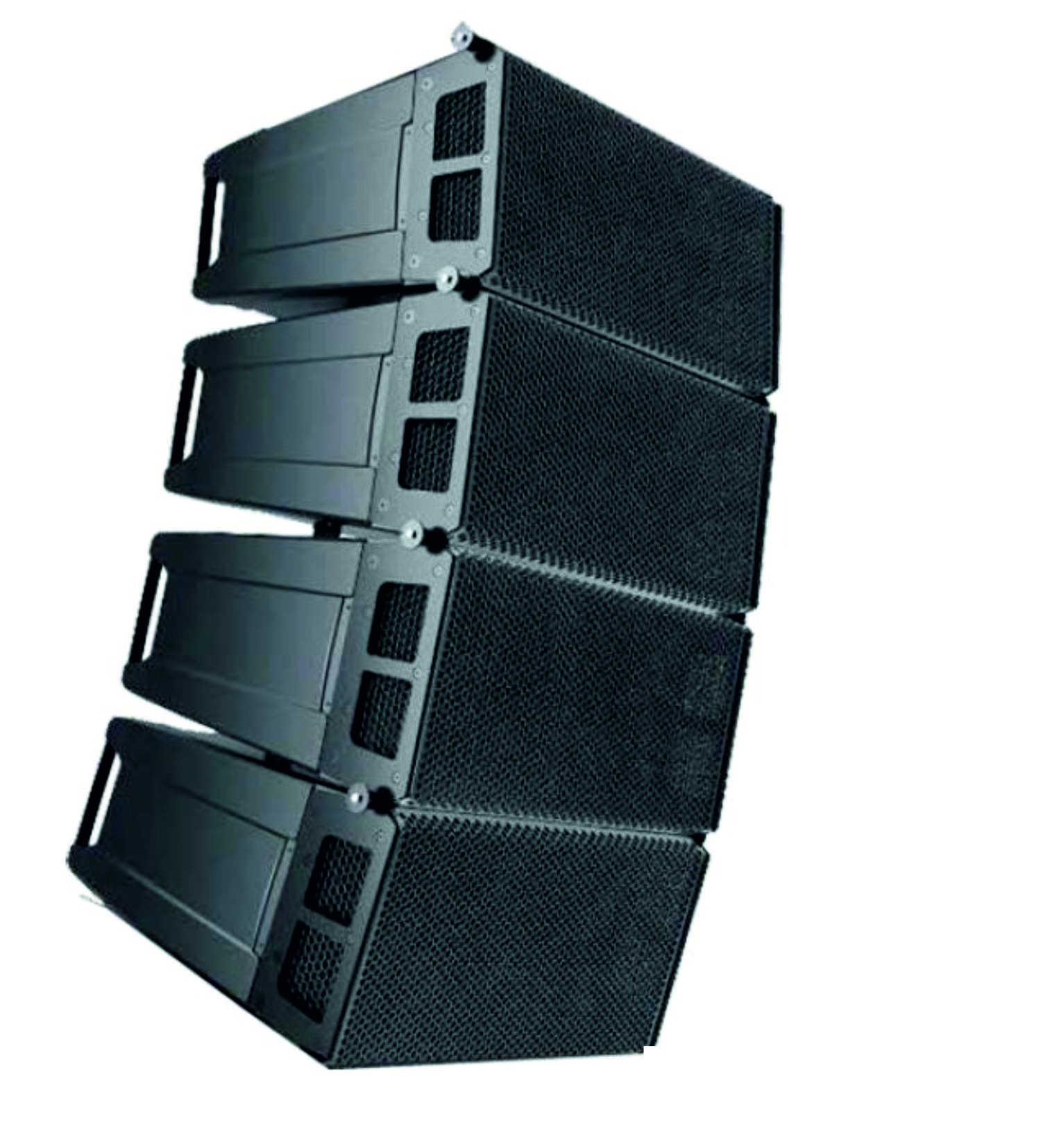

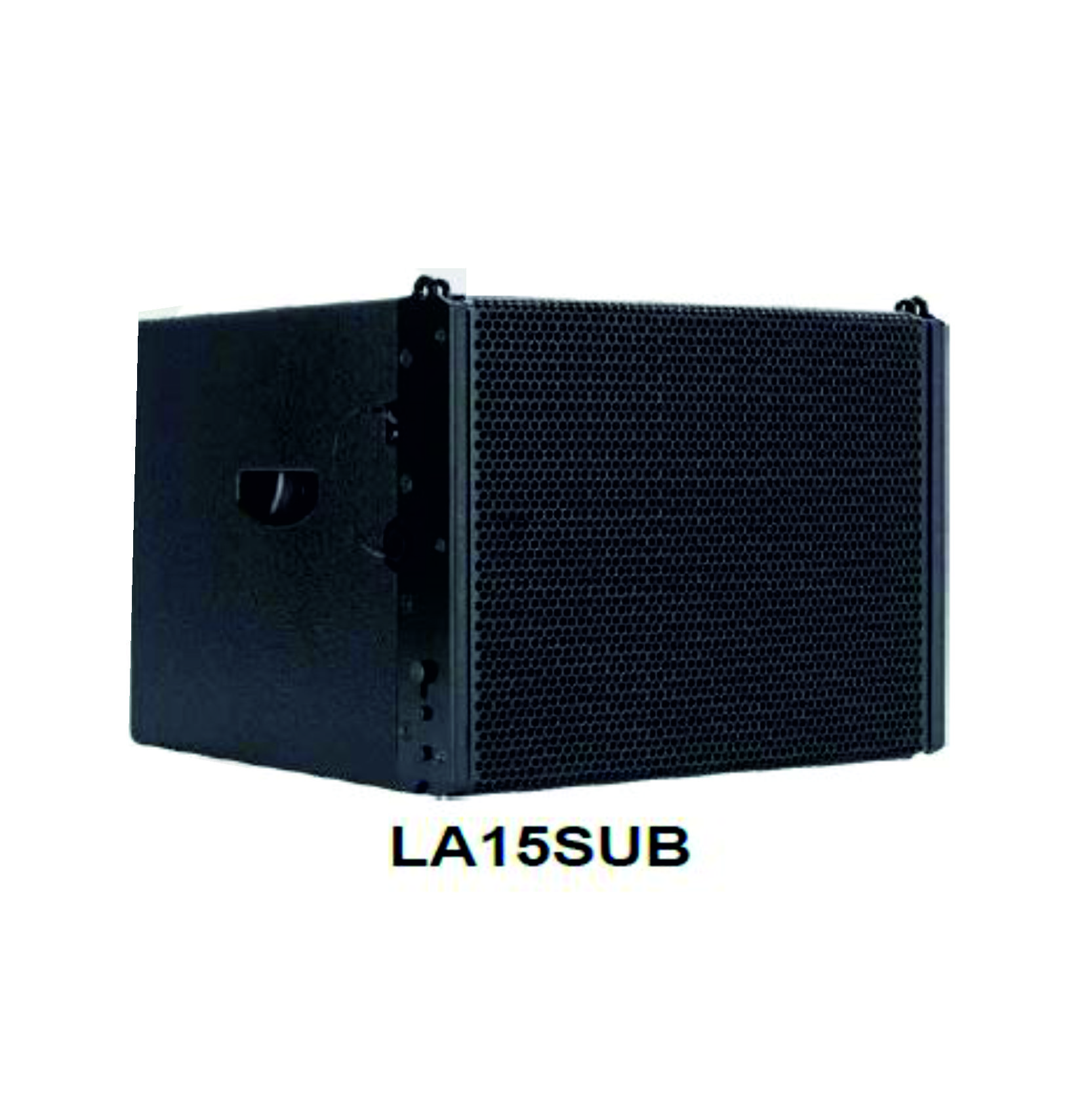

• System Type: LA602A – Dual 6.5" Array Line Module LA15SUB – 15" Array Line Active Subwoofer

• Power Rating RMS: LA602A – 700W RMS / 350W Limit LA15SUB – 1000W RMS / 600W Limit

• Power Rating MAX: LA602A – 1400W LA15SUB – 2000W

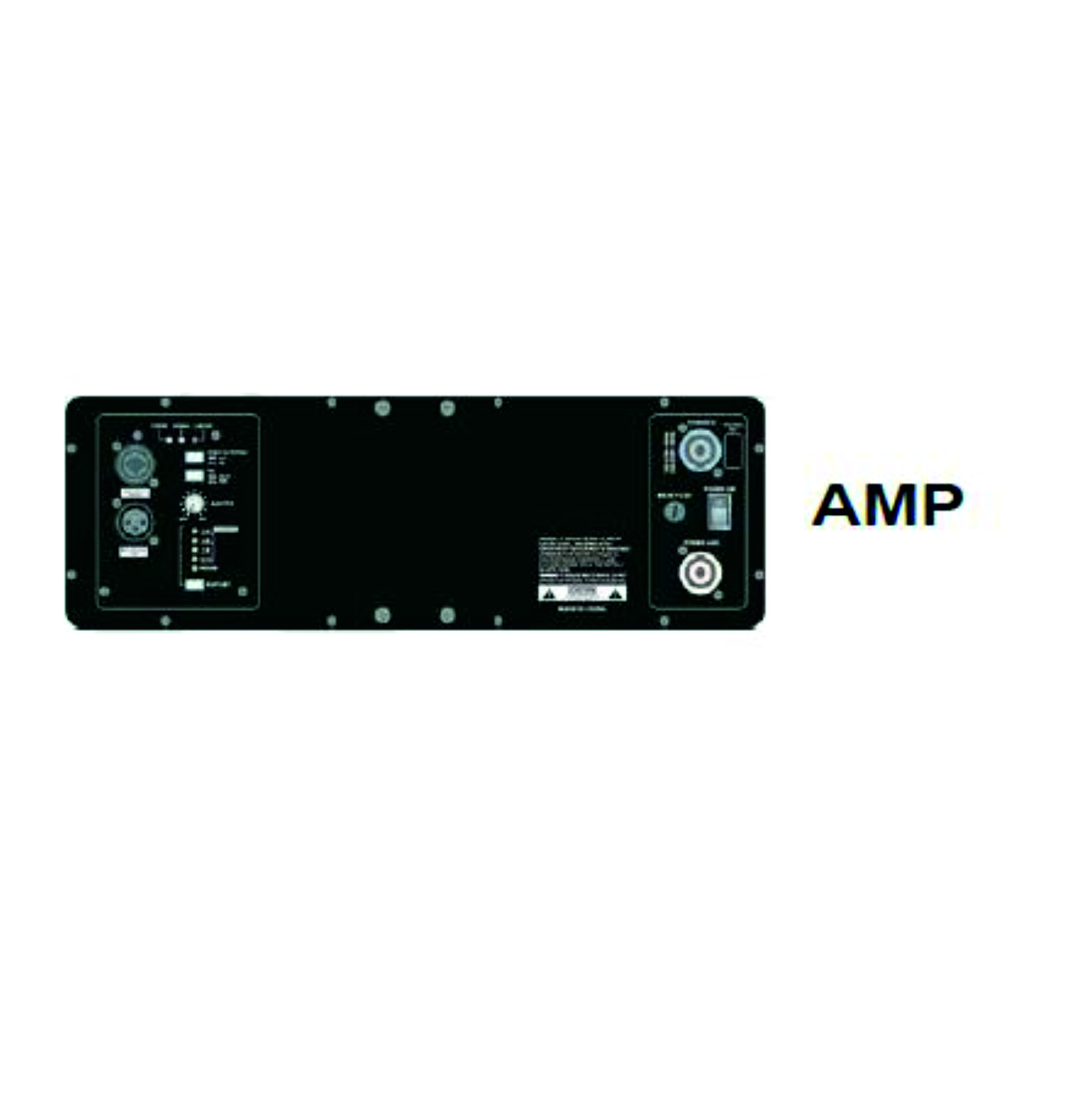

• Amplifier: Class D AMP DSP

• DSP: Pre-DSP setting 5 mode to selected

• Effect: LA602A – High Curving ON/OFF, HF NEAR/FAR

• Coverage Pattern: LA602A – 100° × 5°

• Maximum SPL: LA602A – 120dB LA15SUB – 136dB

• LF Driver: LA602A – 6.5" 2VC ×2 LA15SUB – 15" 4" VC

• HF Driver: LA602A – 1.35" High Compression Horn Driver Tweeter

• Line Input Connector: Balanced Combo TRS/XLR

• Line Output Connector: Balanced Combo TRS/XLR Link

• LED Indicator: Power, Signal, Limit

• Power Voltage: AC110V–230V 50/60Hz

• Enclosure: LA602A – Plastic Cabinet LA15SUB – PlyWood Cabinet

• Qty Container 20/40/40HQ: LA602A – 420/875/1020 LA15SUB – 135/280/325
